• Length: 1300 mm
• Width: 700 mm
• Height: 335 mm
• Ground clearance: 85 mm
• Track width: 150 mm

• Platform height: 420 mm
• Turntable height: 430 mm
• Lifting scissors height: 440 – 740 mm
• Lifting stroke (scissor): 300 mm

• Base unit: 325 kg
• Platform: 370 kg
• Turntable: 400 kg
• Lifting scissors: 430 – 465 kg

• Capacity: 1000 kg
• Max speed: 6 km/h
• Range: 8 km
• Tractive force: 1100 daN/kg
• Max forward slope (unloaded): 45°
• Max lateral slope (unloaded): 40°
• Steering: 1 joystick control
• Drive: 1 joystick control

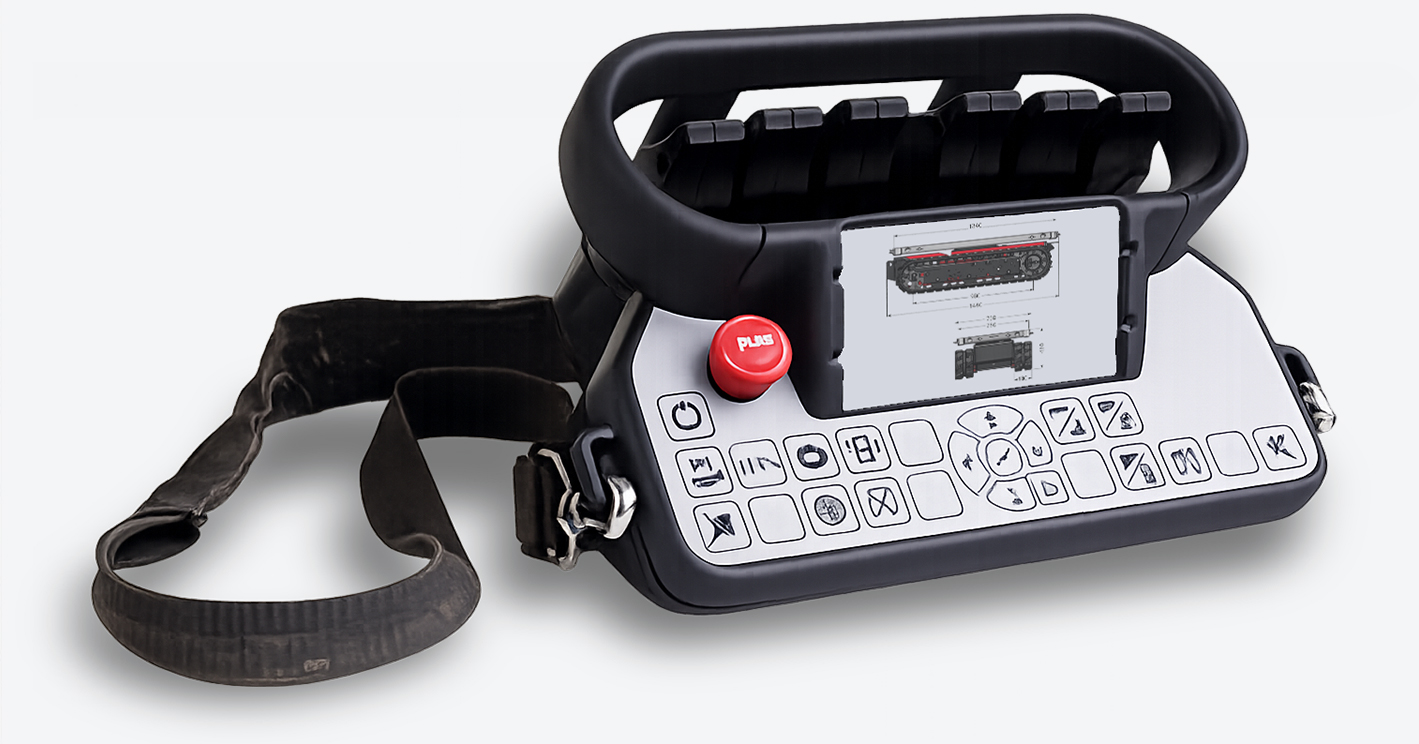

• Control system: Remote RC6

• Rotation: Unlimited
• Optional rotation limit: 45°

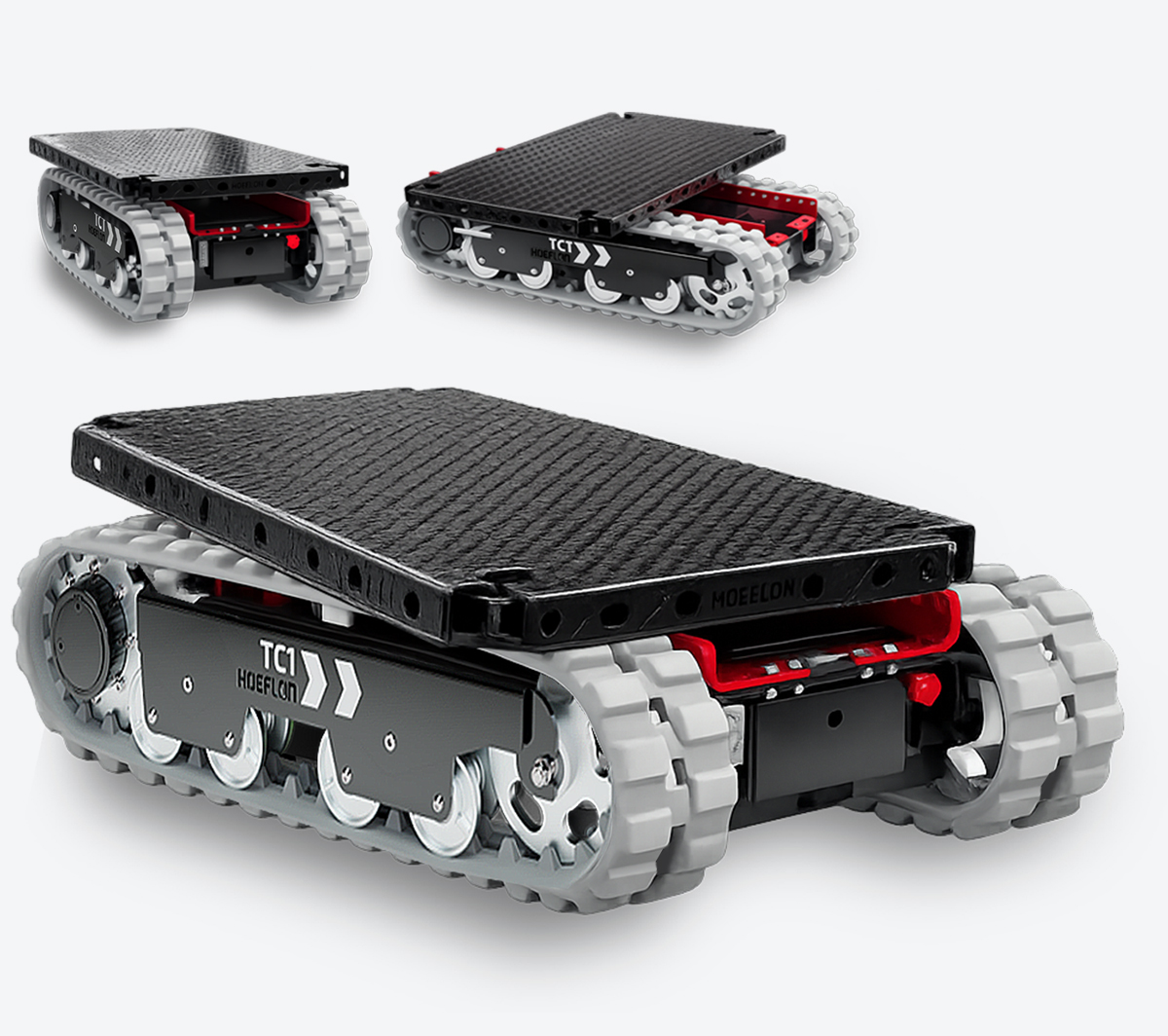

The Hoeflon TC1 is a compact, tracked transport carrier designed for precision movement of heavy loads in confined environments. Its modular design allows it to operate with a platform, lifting scissors, or rotating turntable, enabling both transport and positioning of loads with high control.

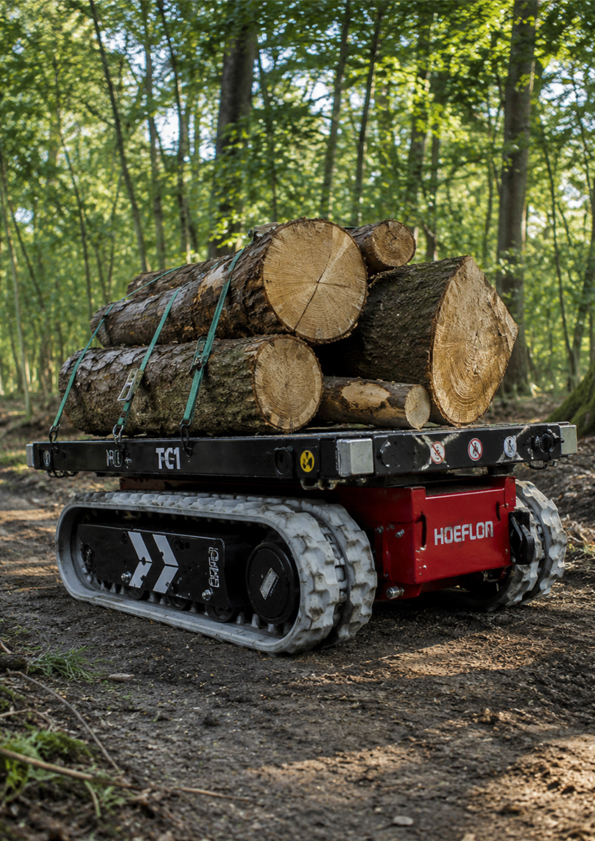

The tracked undercarriage provides stability and traction, allowing the machine to travel across uneven surfaces and steep gradients while maintaining a low centre of gravity.

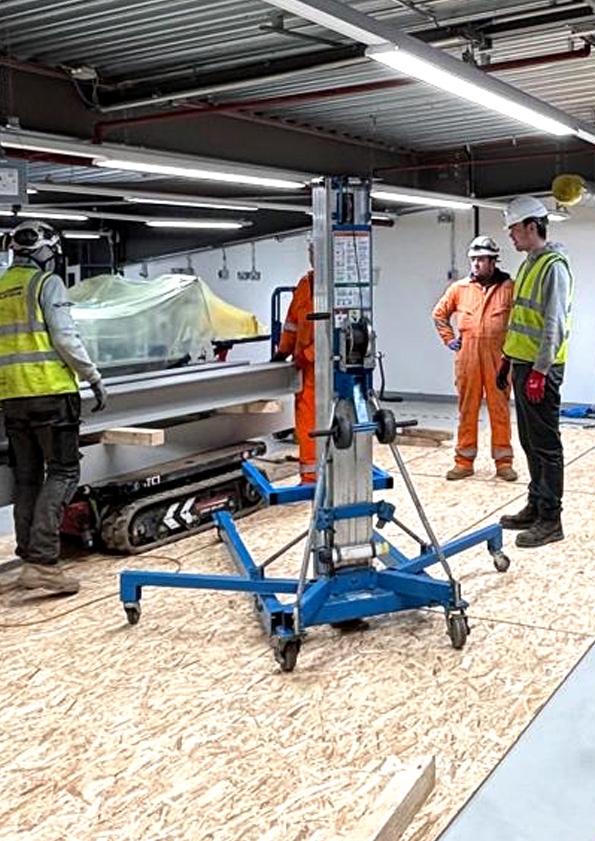

The TC1 offers precise manoeuvrability, using joystick-controlled tank steering or differential track control, making it effective in tight access areas such as internal construction environments.

With its rotating platform and lifting capability, the unit enables accurate load placement without repositioning the base machine – reducing handling time and improving safety on site.
