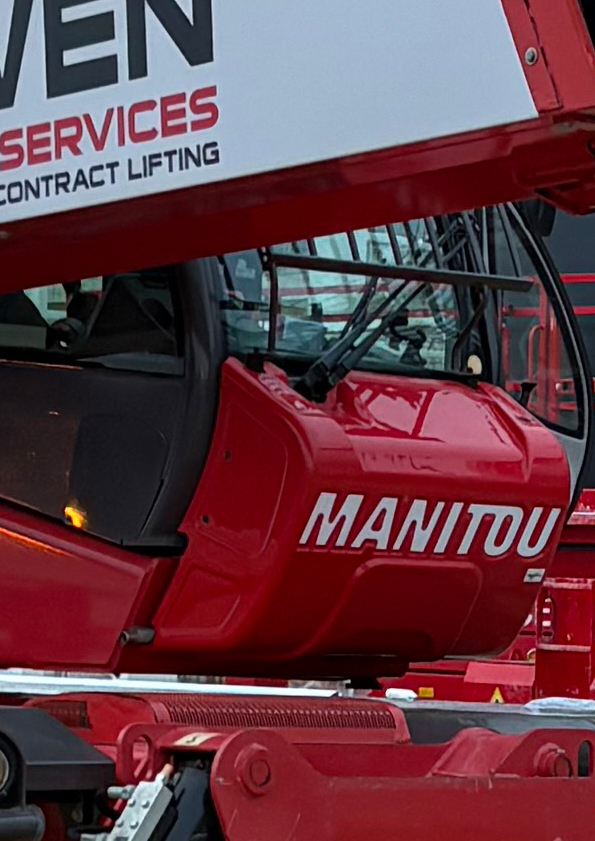

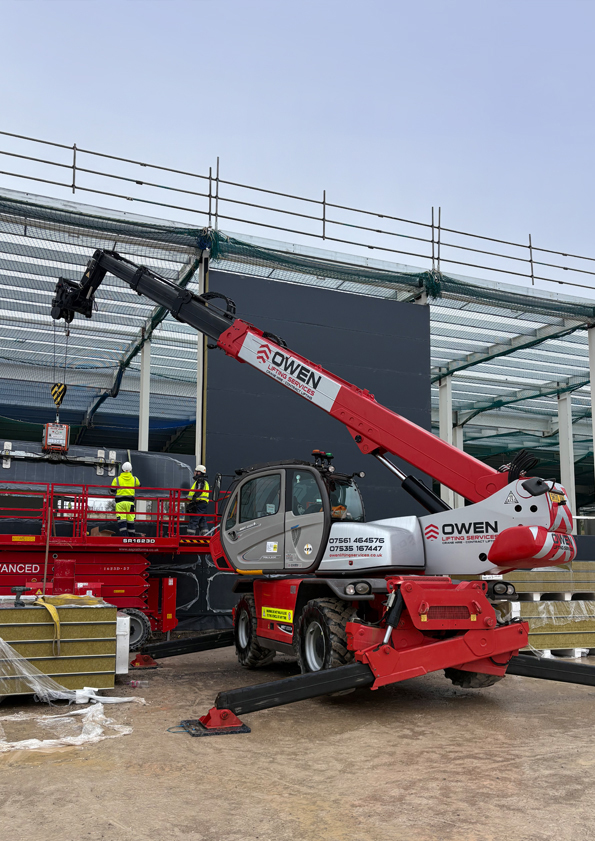

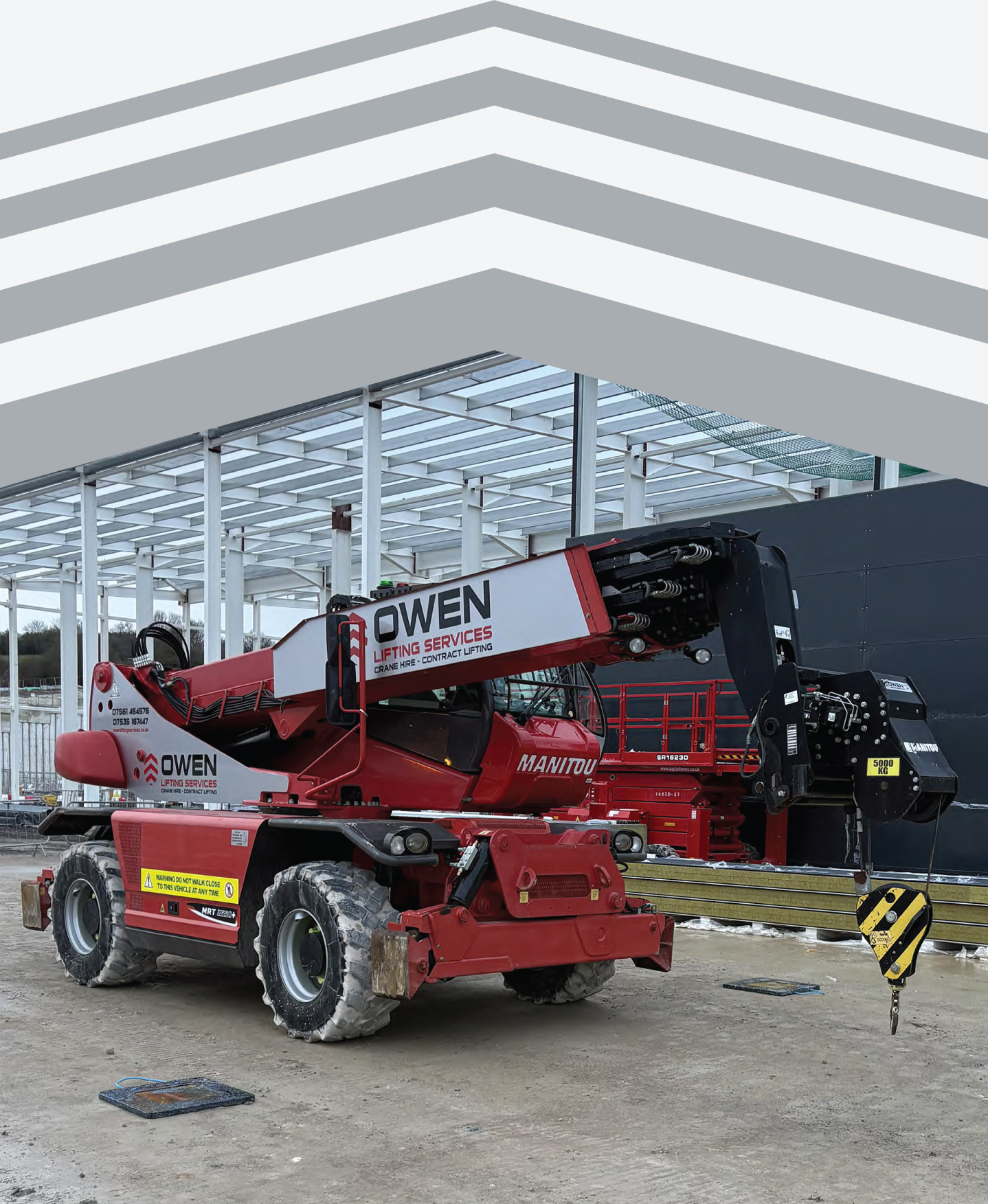

THE Manitou 2550
Rotating telehandler
- Lifting capacity
4,999kg
- Maximum outreach
20 metre - Maximum lifting height
26 metre

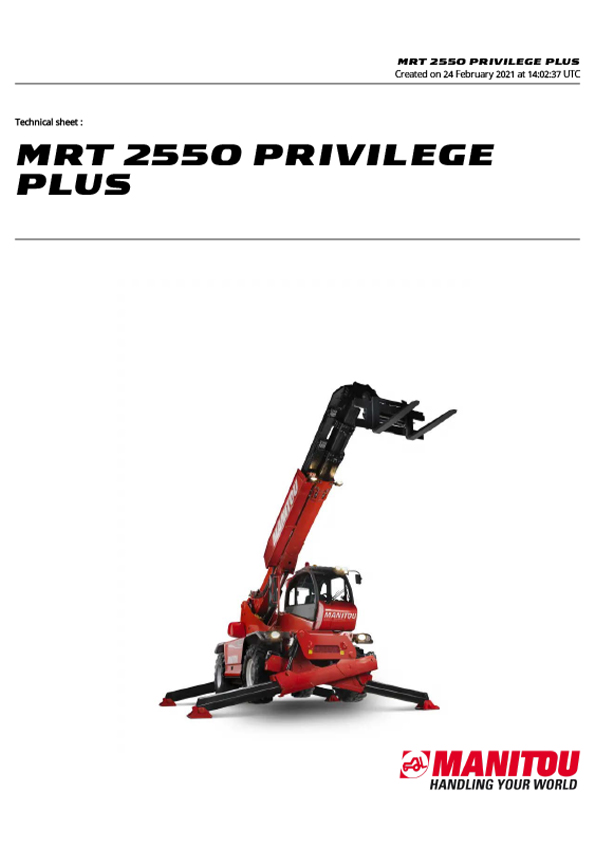

The Manitou 2550 Specifications
CAB
- ROPS/FOPS Level 2 safety cab
- Dual joystick controls
- Multi-mode steering: 2 wheel steer, 4 wheel steer, crab mode
REAL TIME INFORMATION
- Attachment recognition system (E-Reco)
- Integrated load monitoring and control systems
- Hydraulic control via dual joystick interface
CAPACITY & PERFORMANCE
- Maximum lift capacity: 4,999 kg
- Maximum lifting height: 24.7 m
- Maximum reach: 21.4 m
ENGINE & POWERTRAIN
- Mercedes OM 934 LA engine (Stage IV/Tier 4 Final)
- Power: 156 hp (115 kW)
- Max torque: 675 Nm @ 1200–1600 rpm
- Hydrostatic transmission
- Maximum travel speed: 40 km/h
TECHNICAL SPECIFICATION
- 360° continuous turret rotation
- Telescopic duplex stabilisers
- Individual or simultaneous stabiliser control
- Frame levelling ±8°
- 4-wheel drive (2 front/2 rear)
- Pneumatic tyres (445/65 R22.5)
ATTACHMENTS

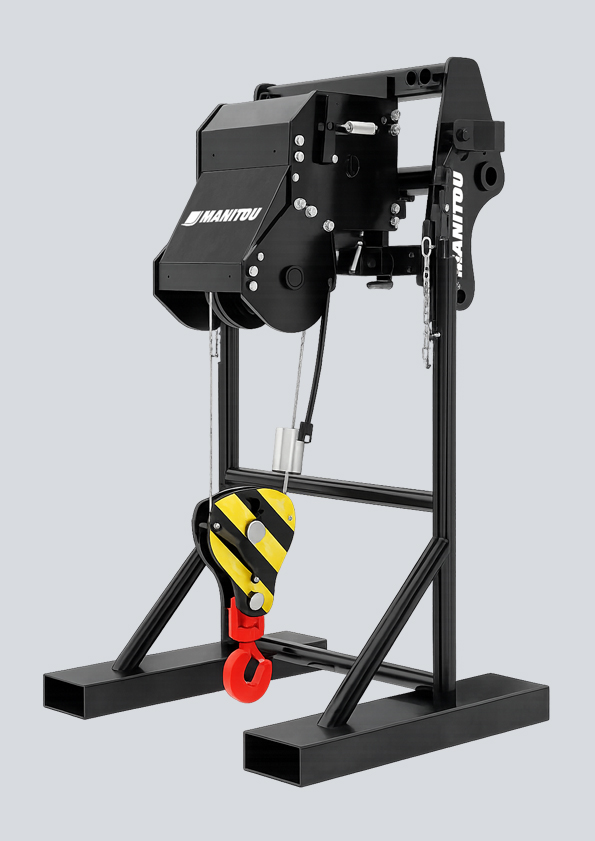

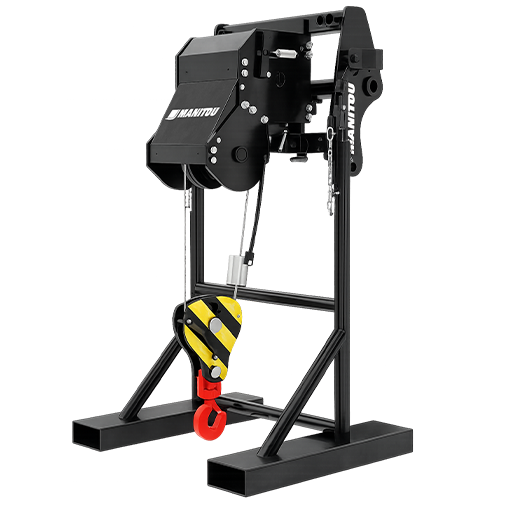

HYDRAULIC
WINCH
WINCH
CAPACITY
3000kg to 6000kg
CABLE
4800cms to 7500cms
MAX OUTREACH
515mm to 6890mm

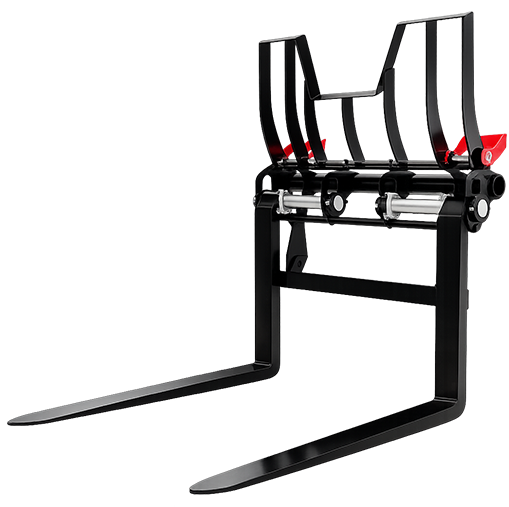

FLOATING
FORKS
FORKS
CAPACITY
4500kg to 7000kg
WIDTH
1110mm to 1900mm
HEIGHT
1009mm to 1470mm
